Ic Cd4047 Inverter Circuit
Inverter circuits are among the easiest circuits to build for newbies.
Ic cd4047 inverter circuit. 12v inverter circuit diagram cd4047 inverter electronic circuit inverter circuit project low power inverter low power inverter circuit diagram simple inverter circuit diagram using simple inverter circuit using cd4047 and uln2003 simple inverter design simple inverter schematics. 100 watt inverter circuit ic cd4047 pin 10 is connected to the gate of q1 and pin 11 is connected to the gate of q2. Resistors r3 and r4 prevents the loading of the ic by the respective mosfet s. When pin 10 is high q1 conducts and current flows through the upper half of the transformer primary which accounts for the positive half of the output ac voltage.
Our household inverters mainly have two parts battery charging circuit and inverter circuit. Battery charging circuit charges the battery when power is available which may be mains power solar power or any other sources and the inverter circuit convert the dc power stored in the battery to ac whenever needed. Square wave inverter using cd4047lm3582sc10612n3055. This is ac inverter.
Input 12vdc from car battery to output 220v ac 50hz or 60hz at square wave signal. The main part is ic cd4047 or ic 4047 series and ic lm358 and transistor 2sc1061 and 2n3055. The transformer is 12v 012v primary. And current 3a up for power output than 100w.
You can increase the number of mosfet and increase the power output of the inverter circuit. It is a cd4047 inverter circuit. And that is a 14 pin ic. Working as fine for home usage.
This circuit we use an ic 4047 as astablemonostable multivibrator that low power is main of circuit in the operation of circuit. To change the 12 volts direct current into ac electricity of 245 volts. You must use a battery and battery charger to implement this inverter circuit. Battery charging circuit is described in our previous post.
The inverter circuit is built around ic cd4047 which is wired as astable multivibrator. The operating frequency of astable multivibrator is set to 50hz. Pure sine wave inverter circuit using ic 4047 updated. May 13 2019 by swagatam a very effective pure sine wave inverter circuit can be made using the ic 4047 and a couple ic 555 together with a few other passive components.
Four Cd4047 Inverter Circuit 60w 100w 12vdc To 220vac
40 Watt Inverter Circuit Using Cd4047 Gadgetronicx
Simple Inverter Circuit Using Cd4047 And Uln2003
Pure Sine Wave Inverter Circuit Using Ic 4047 Homemade Circuit

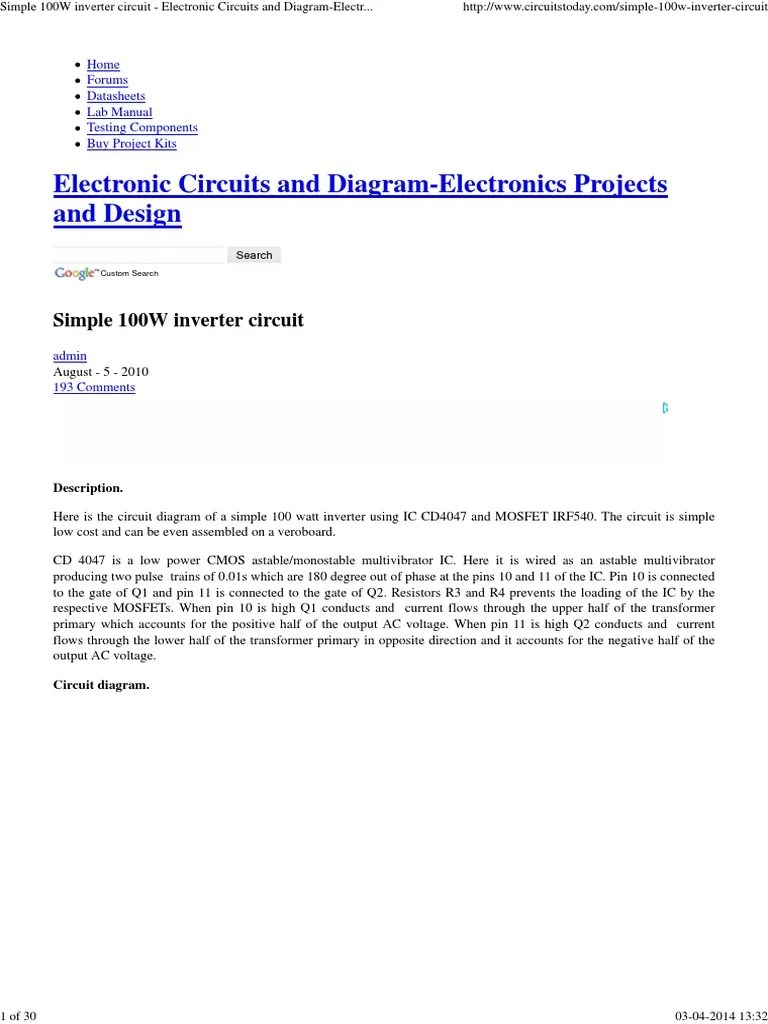

Simple 100w Inverter Circuit Working And Circuit Diagram Updated
50w 220v Inverter Circuit Diagram Using Ic 4047 50w Inverter Circuit
Low Power Square Wave Inverter Circuit Using Cd4047
Dc To Ac Inverter With Ic Cd4047 Diagrams Circuit
+Circuit+diagram+using+CD4047+and+IRFZ44+power+MOSFET.png)
Simple Low Power Inverter Circuit 12v Dc To 230v Or 110v Ac
Cd4047 Based Squarewave Inverter Oscillator Circuits Diy
12v To 220v Inverter Based Mosfet Irfz44 Inverter Circuit And Products
Four Cd4047 Inverter Circuit 60w 100w 12vdc To 220vac
7 Simple Inverter Circuits You Can Build At Home Homemade Circuit
Four Cd4047 Inverter Circuit 60w 100w 12vdc To 220vac
40 Watt Inverter Circuit Using Cd4047 Gadgetronicx
Ic Based Simple 12v To 240v Inverter Using Mosfet Ic 4047 With

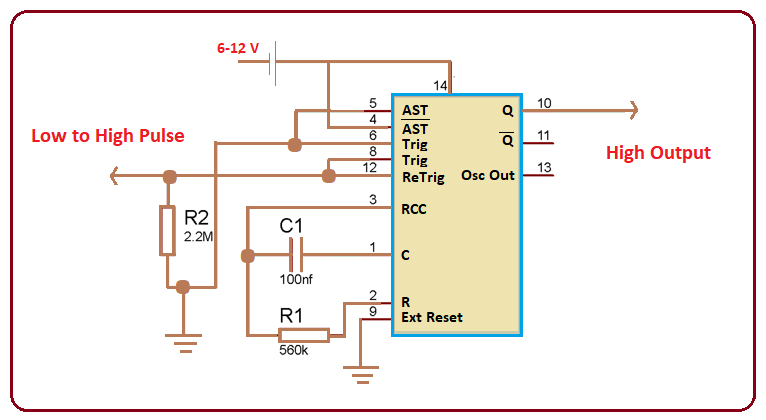

Introduction To Cd4047 The Engineering Projects
